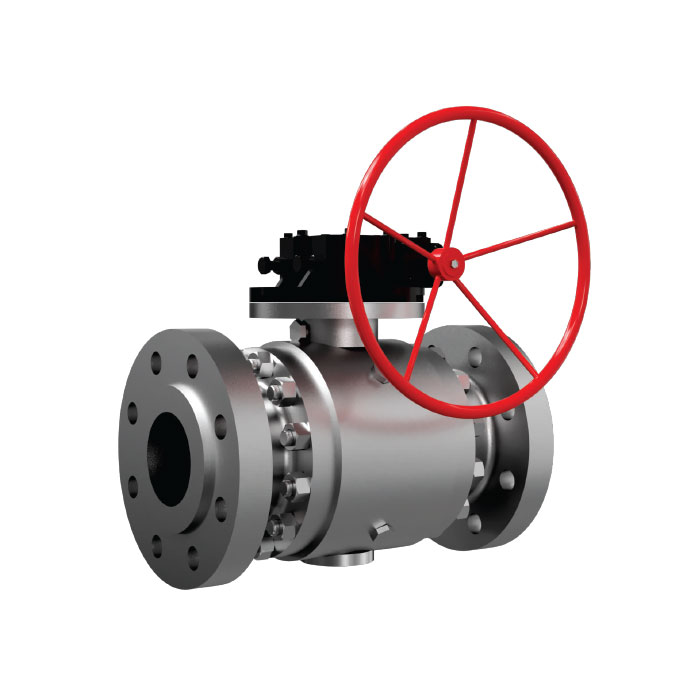

TECHNICAL DATA :
| Design & Manufacturing Std | : | API 6D |
|---|---|---|
| RANGE | : | ( 2” to 16”) Class 150# & 300# 2” to 6” ,Class: 600# |
| Inspection & Testing STD | : | ISO 5208 / API 6D |
| End flange Dimension | : | ASME B 16.5 |
| B W End Dimension | : | ASME B 16.25 |
| Face To Face & End to End Dimension | : | ASME API 6D |
| Gasket Design | : | ASME B 16.20 |
| Body Type | : | Two/Three Piece Design |
| Port | : | Full Bore /Reduced Bore |
| PART NOMENCLATURE | MATERIAL |
|---|---|
| BODY | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| END COVER | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| BALL | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| SEAT GUIDE | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| SEAT INSERT | RPTFE/NYLON/DEVLON/PEEK |
| STEM | SS 316 /SS 304/SS 410 |
| STUFFING BOX | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| TRUNNION PLATE | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| OPERATING FLANGE | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| SPRING | INCONNEL |
| BODY SEAL | SPW SS316 + GRAPHITE FILLER |
| STUFFING BOX SEAL | SPW SS316 + GRAPHITE FILLER |
| PACKING | GRAPHITE |
| SEAT GUIDE O RING | VITON–B |
| STUFFING BOX O RING | VITON–B |
| BODY STUD NUT | ASTM A 193 Gr. B7/B8 & ASTM A194 Gr. 2H /8 |
| GEAR BOX | COMERCIAL |
| NAME PLATE | SS 202 |
