TECHNICAL DATA :
| Manufacturing Std. | : | ISO 5752 / Bs5155 / API 609 / IS 13095 |
|---|---|---|
| Ispection and Testing Std. | : | BS 6755 (Part-1) / API 598 / EN 12266-1 |
| End Connection | : | Wafer to Suit ANSI B16.5 150# / ANSI 125# |
| BS To Tab & D & E | : | IS 6392 NP 0.6 / 1.0/1.6 |
| Facto Face | : | BS 5155 / ISO 5752 / API 609 |
| Top Flange Drilling | : | ISO 5211 |
| PART NOMENCLATURE | MATERIAL |
|---|---|
| BODY | CAST IRON / S.G. IRON / ASTM A 216 GR. WCB |
| ASTM A 351 GR. Cf8 / ASTM A 351 GR. CF8M | |
| DISC | CAST IRON / S.G. IRON / ASTM A 216 GR. WCB |
| ASTM A 351 GR. CF-8M, DICO ENCAPSULATION | |
| WITH VITION, NIUTRILE, EPDM, NEOPRENE & HYPALON | |
| AVAILABLE EPOXY CIOATED COATED | |
| SPINDLE | AISI 410 / AISI 304 / AISI 316 |
| SEAT | NITRILE / EPDM / SILICON / VITON / HYPALON / PTFE |
| ‘O’ RING | NITRILE / EPDM |
| PIN | AISI 304 / AISI 316 |

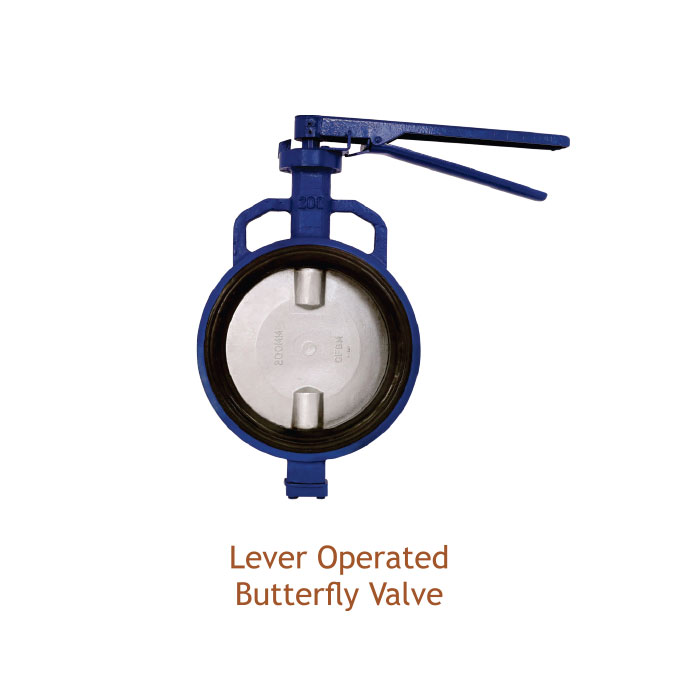

| LEVER | M.S. FABRICATED |

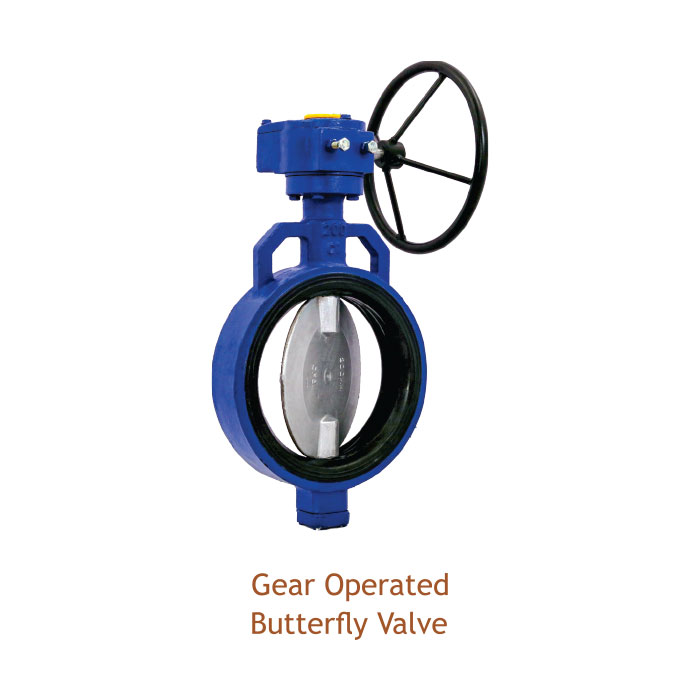

| GEAR BOX | CAST IRON |
| HAND WHEEL | MS FABRICATED |
| NAME PLATE | ALUMINIMUM |
