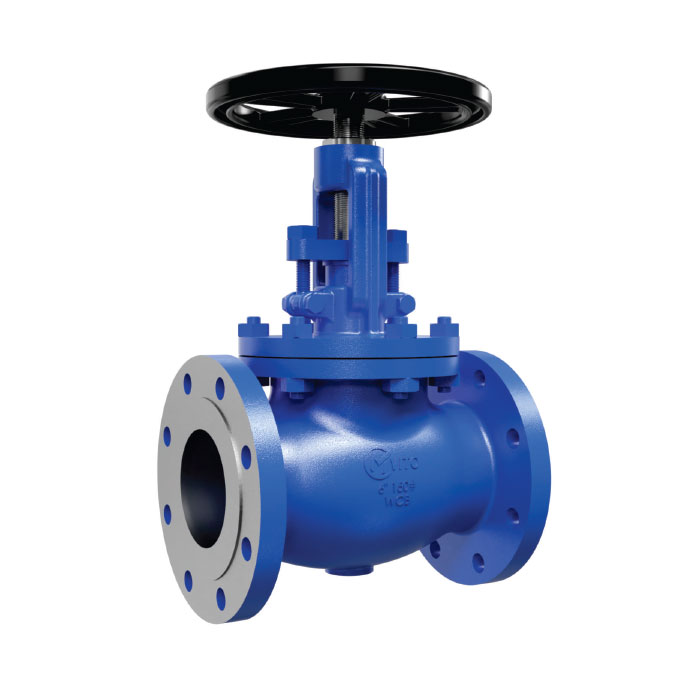

TECHNICAL DATA :
| Design & Manufacturing Std | : | BS 1873 |
|---|---|---|
| RANGE | : | 2” to 18” ,Class: 150 & 300# / 2” to 6”, Class: 600# |
| Inspection & Testing STD | : | API 598 / BS EN 12266-1 Part 1 & 2 |
| End flange Dimension | : | ASME B 16.5 |
| B W End Dimension | : | ASME B 16.25 |
| Face To Face & End to End Dimension | : | ASME B 16.10 , BS 2080 |
| Gasket Design | : | ASME B 16.20 |
| IBR APPROVED |
| PART NOMENCLATURE | MATERIAL |
|---|---|
| BODY | ASTM A 216 Gr. WCB/WCC , ASTM A 352 Gr. LCB/LCC ASTM A 351 Gr. CF8M /CF8/CF3/CF3M |
| BONNET | ASTM A 216 Gr. WCB/WCC , ASTM A 352 Gr. LCB/LCC ASTM A 351 Gr. CF8M /CF8/CF3/CF3M |
| PLUG | AISI 410/ AISI 304/AISI 316/13% Cr steel Facing/ST-6 Facing |
| PLUG NUT | AISI 410/ AISI 304/AISI 316 |
| SEAT RING | AISI 410/ AISI 304/AISI 316/13% Cr steel Facing/ST-6 Facing |
| STEM | AISI 410/ AISI 304/AISI 316 |
| BACK SEAT BUSHING | AISI 410/ AISI 304/AISI 316 |
| GLAND FLANGE | ASTM A 216 Gr. WCB/WCC , ASTM A 352 Gr. LCB/LCC ASTM A 351 Gr. CF8M /CF8/CF3/CF3M |
| YOKE NUT | S.G IRON |
| GRUB SCREW | CARBON STEEL/STAINLESS STEEL |
| STEM PACKING | BRAIDED GRAPHITE/DIE FORMED GRAPHITE RING |
| BONNET GASKET | SS 304/SS316 SPIRAL WOUND |
| JOINT STUD NUT | ASTM A 193 Gr. B7/B8 & ASTM A194 Gr. 2H /8 |
| GLAND EYE BOLTS & NUTS | ASTM A 193 Gr. B7/B8 & ASTM A194 Gr. 2H /8 |
| HAND WHEEL | DUCTILE IRON / MALLEABLE IRON |
| HAND WHEEL NUT & WASHER | CARBON STEEL/STAINLESS STEEL |
| NAME PLATE | SS 202 |
