TECHNICAL DATA :
| Design & Manufacturing Std | : | ISO 17292 |
|---|---|---|
| RANGE | : | ( 1/2” to 6”) Class 150# & 300# |
| Inspection & Testing STD | : | ISO 5208 / BS EN 12266-1 Part 1 & 2 |
| End flange Dimension | : | ASME B 16.5 |
| Socket / Screwed End Dimension | : | ASME B 16.11 / ASME B 1.20.1 |
| Face To Face & End to End Dimension | : | ASME B 16.10 , BS 2080 |
| Gasket Design | : | ASME B 16.20 |

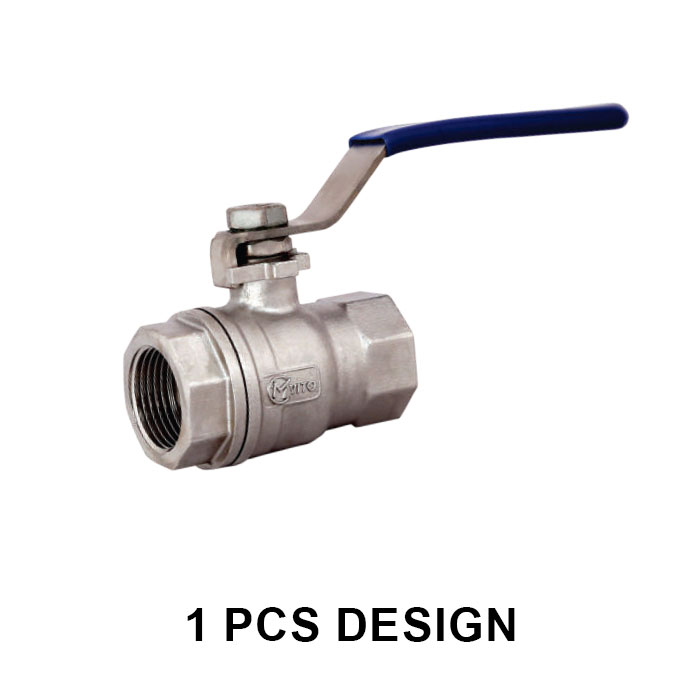

| Body Type | : | Single/Two/Three Piece Design |
| Port | : | Full Bore /Reduced Bore |
| PART NOMENCLATURE | MATERIAL |
|---|---|
| BODY | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| END COVER | ASTM A 216 Gr. WCB / ASTM A 351 Gr. CF8M/CF8 |
| BALL | AISI 316 / AISI 304 |
| GLAND | AISI 316 / AISI 304 |
| STEM | AISI 316 / AISI 304 |
| SEAT | GFT /CFT/RPTFE/PTFE/NYLON |
| STEM SEAL | PTFE |
| PACKING | GRAPHITE |
| BODY SEAL | GRAPHITE / SPW SS 316/304 WITH GRAPHITE FILLER |
| GLAND NUT | CARBON STEEL /STAINLESS STEEL |
| LEVER | CARBON STEEL /STAINLESS STEEL |
| BODY STUD NUT | ASTM A 193 Gr. B7/B8 & ASTM A194 Gr. 2H /8 |
| SLEEVE | P.V.C |
| NAME PLATE | SS 202 |
